Screw Chillers

Contec Airflow presents Blue Star make pioneer in developing and manufacturing screw Chillers for various applications. A new generation of Air Cooled Screw Chillers with refrigerant R134a are being added to the present range of R22-Air Cooled and Water Cooled Screw Chillers.

These Chillers are energy efficient and robust in construction and are developed with latest technology which includes R134a optimized screw compressor, highly efficient DX cooler and air cooled condenser. The latest generation, highly efficient copper tubes are incorporated in the cooler.

Electronic expansion valves and the advanced MCS Magnum Controller are also incorporated. The units have a very low input kW/TR and are tested in our state-of-the-art test lab to validate the performance.

Features :

  • With single compressor:75 TR, 102 TR, 145 TR, to 206 TR
  • With double compressors:
    150 TR, 177 TR, 204 TR, 247 TR, 290 TR, 320 TR, 366 TR.
  • With triple compressors: 328 TR, 390 TR, 420 TR.
  • Highly efficient and low noise compressors
  • Tested in accordance with ARI/European standards
  • Step less capacity control, from 25% to 100% making it suitable for varying load applications and efficient under part load conditions.
  • Refrigerant liquid to liquid type heat exchanger provided for Economizer system. Liquid refrigerant is sub-cooled to enhance the capacity thereby reducing power consumption and enhancing the Coefficient of Performance.
  • Oil cooler and liquid injection for high ambient operation
  • Shell and tube evaporator has been built using imported, doubly enhanced and highly efficient finned copper tubes.
  • RS 232 and RS 485 ports for remote connectivity, fault indication and status facility.
  • BMS compatibility with Mod bus as a standard feature. Optional translators available for compatibility with JC, N2, BACnet.
  • Economizer
  • Oil cooler
  • Liquid Refrigerant injection to cool motor winding during part load operation.

Contec Airflow presents Blue Star make (Pioneer in developing and manufacturing) screw Chillers for various applications. A new generation of Air Cooled Screw Chillers with refrigerant R134a are being added to the present range of R22-Air Cooled and Water Cooled Screw Chillers.

These Chillers are energy efficient and robust in construction and are developed with latest technology which includes R134a optimized screw compressor, highly efficient DX cooler and air cooled condenser.

Electronic expansion valves and the advanced MCS Magnum Controller are also incorporated. The units have a very low input kW/TR and are tested in our state-of-the-art test lab to validate the performance.

Features :

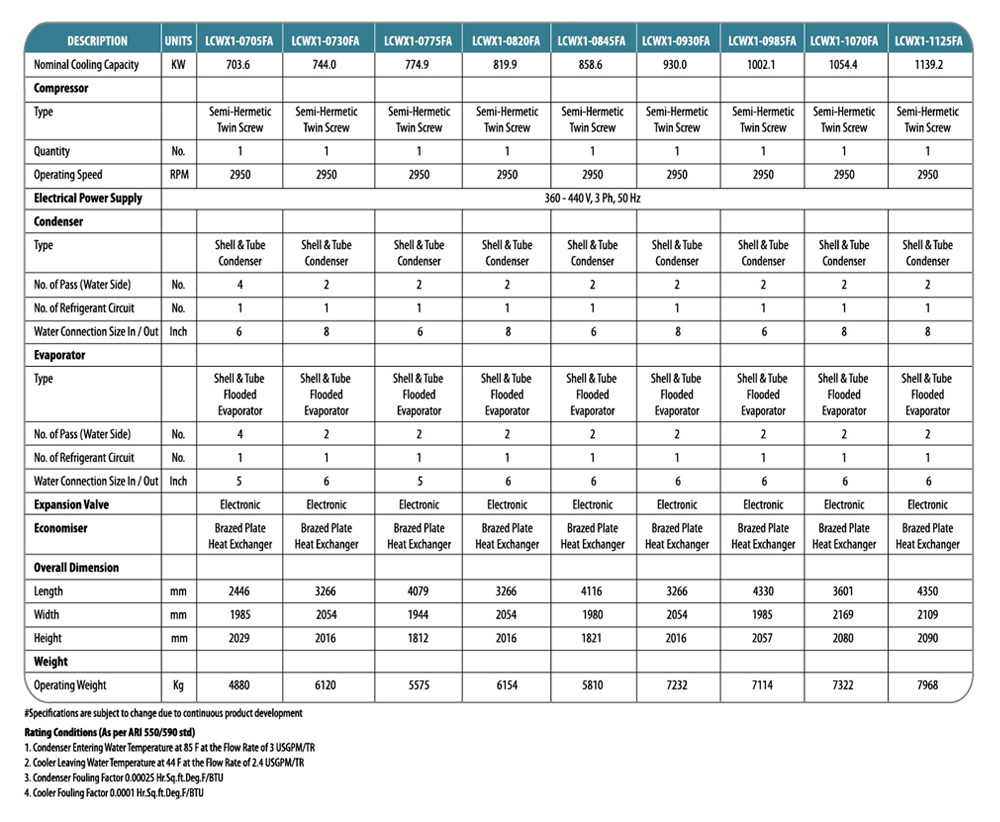

Contec Airflow offers Blue Star make of wide range of water cooled Flooded and DX screw chillers with an environment-friendly R134a refrigerant. These chillers are manufactured at Blue Star's own ISO 9001 certified factory, with the chiller test bench certified by Air conditioning, Heating and Refrigeration Institute (AHRI).

The test bench is also certified by DMT Gmbh & Co., complying with requirements of EN - 14511. screw chillers are equipped with effective capacity control, provide excellent efficiency under part loads, making it ideal for varying load applications such as office spaces, hotels, hospitals, malls and multiplexes.

  • With single compressor: 75 TR, 102 TR, 145 TR, to 206 TR.
  • With double compressors:
    150 TR, 177 TR, 204 TR, 247 TR, 290 TR, 320 TR, 366 TR.
  • With triple compressors: 328 TR, 390 TR, 420 TR.
  • Highly efficient and low noise compressors
  • Tested in accordance with ARI/European standards
  • Step less capacity control, from 25% to 100% making it suitable for varying load applications and efficient under part load conditions.
  • Refrigerant liquid to liquid type heat exchanger provided for Economizer system. Liquid refrigerant is sub-cooled to enhance the capacity thereby reducing power consumption and enhancing the Coefficient of Performance.
  • Oil cooler and liquid injection for high ambient operation
  • Shell and tube evaporator has been built using imported, doubly enhanced and highly efficient finned copper tubes.
  • RS 232 and RS 485 ports for remote connectivity, fault indication and status facility.
  • BMS compatibility with Mod bus as a standard feature. Optional translators available for compatibility with JC, N2, BACnet.
  • Economizer
  • Oil cooler
  • Liquid Refrigerant injection to cool motor winding during part load operation.
